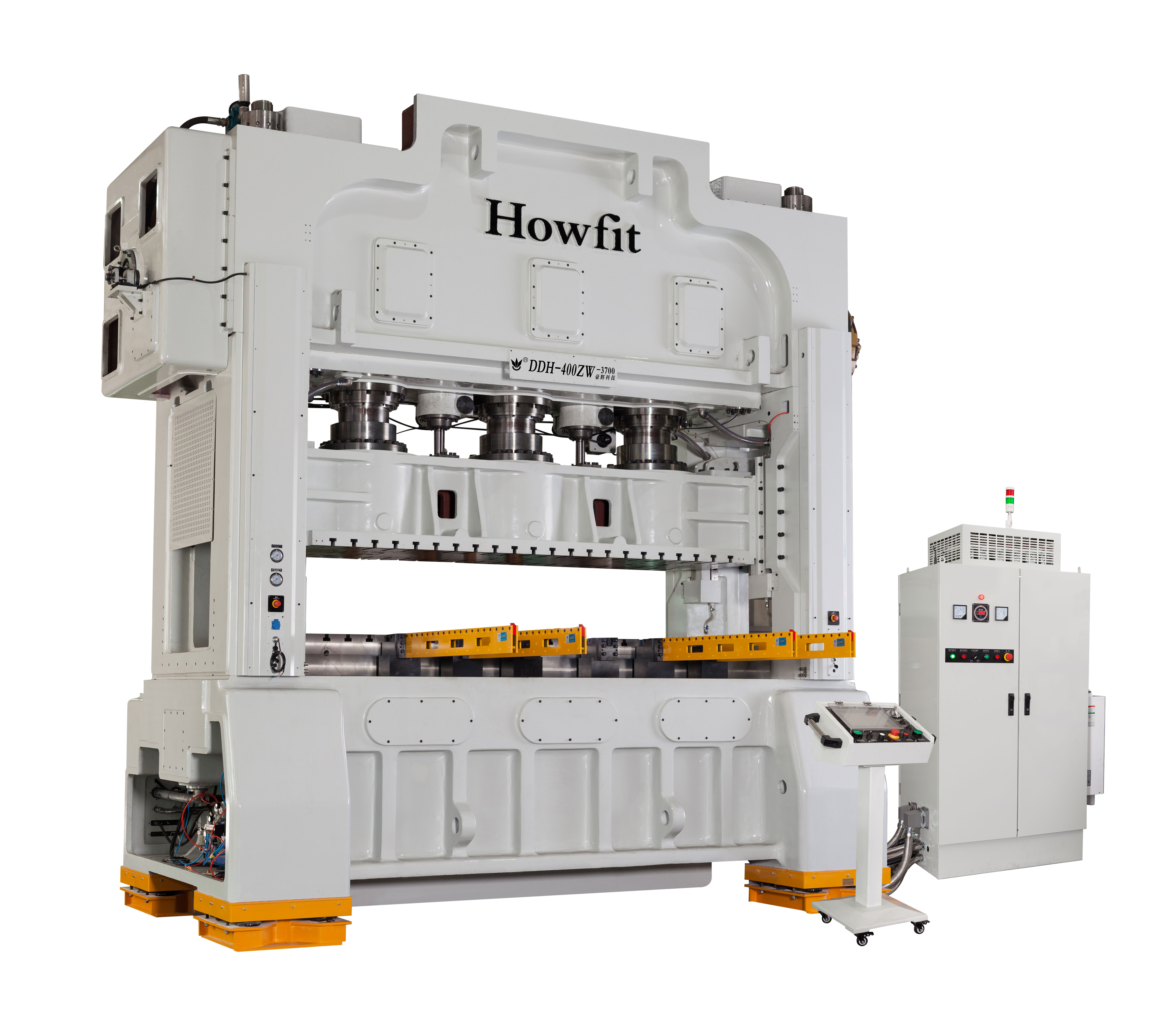

In today’s manufacturing industry, high-speed precision punching machines have become an indispensable part of the production line. Among them, the HOWFIT DDH 400T ZW-3700 high-speed precision punch machine has won wide recognition in the industry for its excellent performance and stable quality. This article will introduce in detail the manufacturing process of the DDH 400T ZW-3700 high-speed precision punch machine, and how to ensure the stability of its manufacturing quality through strict quality control.
The key role of headstock processing technology
The headstock is an important part of the punch machine, and its processing technology directly affects the manufacturing quality of the entire machine. The head base of the DDH 400T ZW-3700 high-speed precision punch press is made of high-quality alloy castings and is precision-machined to ensure its high precision and quality. The processing technology of the headstock includes multiple steps such as casting, annealing, vibration aging treatment, finishing and inspection.
Annealing and processing
After casting is completed, the casting needs to be annealed twice. Annealing is a heat treatment process that heats the material to a certain temperature, maintains it for a period of time, and then slowly cools it to eliminate internal stress, improve the material’s structure, and improve its plasticity and toughness. After the castings of the DDH 400T ZW-3700 high-speed precision punching machine are annealed twice, the internal stress is effectively eliminated, thus ensuring the stability of the machine’s manufacturing quality.
In addition, castings also need vibration aging treatment. Vibration aging is a method that eliminates the internal stress of materials through artificial interference with vibration. After the castings of the DDH 400T ZW-3700 high-speed precision punch machine undergo vibration aging treatment, their internal stress relief can reach 98%, further ensuring the stability of the machine’s manufacturing quality.
finishing
Finishing is an important part of the manufacturing process. The accuracy and quality of the head base of the DDH 400T ZW-3700 high-speed precision punch machine have been further improved after finishing machining. Finishing can not only improve the accuracy of the product, but also improve its surface quality, thereby increasing the product’s service life and reliability.
Detection
Strict quality testing is required before products are delivered to customers. The DDH 400T ZW-3700 high-speed precision punch press uses a laser tracker for testing to ensure the high quality of the machine. The laser tracker is a high-precision measuring equipment that can accurately measure the size, shape, position and other parameters of the product to ensure the quality of the product.
In general, during the manufacturing process of the DDH 400T ZW-3700 high-speed precision punch press, strict quality control and precise processing technology ensure the stability of its manufacturing quality. Whether it is the processing technology of the headstock, annealing and treatment, finishing, and final inspection, every link reflects strict quality control, thereby ensuring the excellent performance and stability of the DDH 400T ZW-3700 high-speed precision punch. the quality of.
