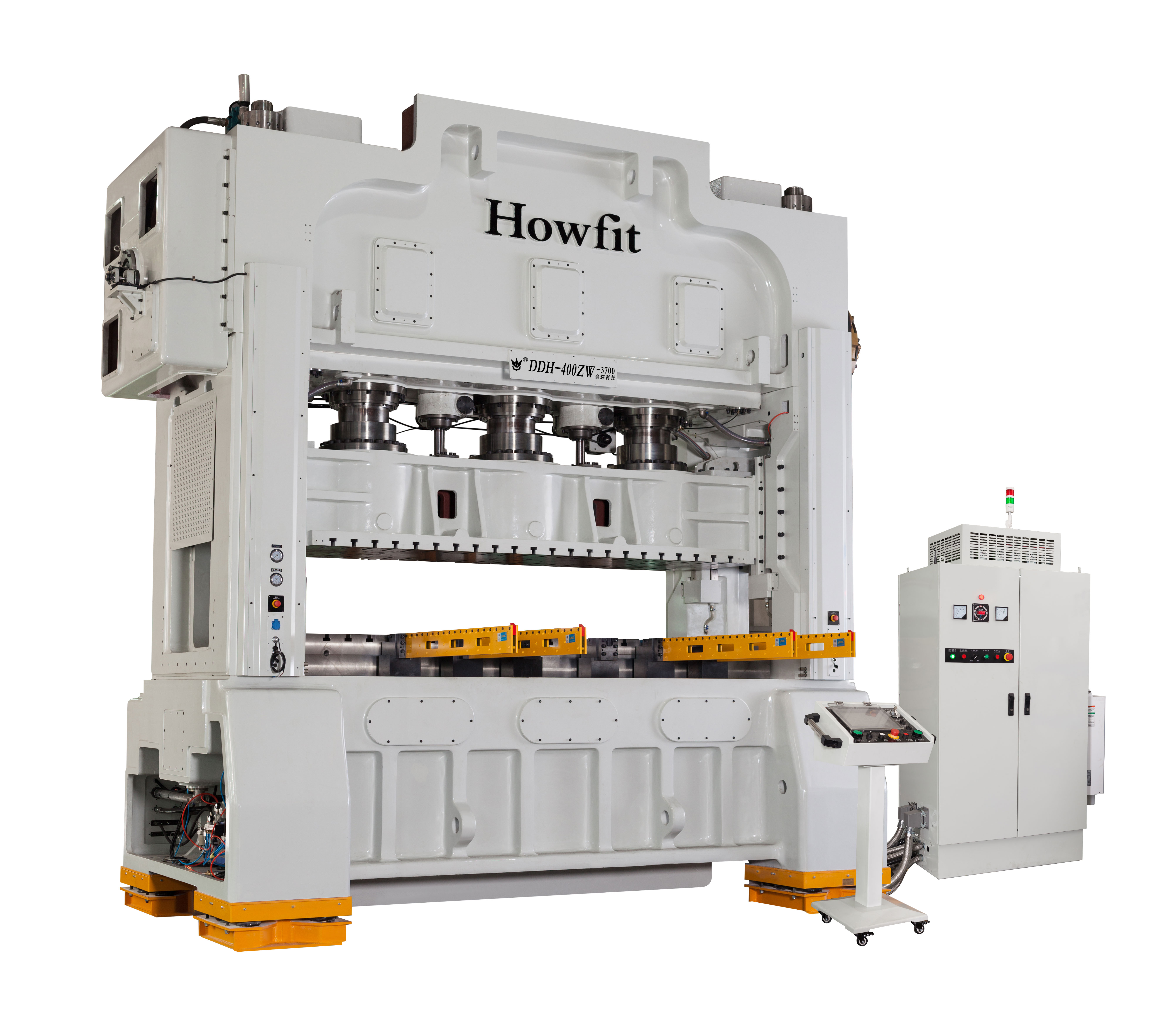

DDH 400T ZW-3700: Excellent performance and innovative design of high-speed precision punching machine

DDH 400T ZW-3700: Excellent performance and innovative design of high-speed precision punching machine

1. Equipment configuration list and parameter overview

Device Configuration Checklist:

• Servo motor mold height adjustment
• Inching positioning function
• Digital mold height indicator
• The second group of misdelivery was detected
• Single action has multi-angle positioning function
• Host forward and reverse device
• Hydraulic slider fixing device
• Lubricating oil constant temperature cooling + heating device
• Separate brake clutch
• Independent electric control box + mobile operating console
• Work lights, maintenance tools and tool boxes
• Lubrication circulation pump station
• Safety grating and front and rear safety door devices

Device parameters:

• Nominal force: 4000KN
• Ability generation point: 3.0mm
• Stroke: 30mm, number of strokes: 80-250s.p.m
• Closed height: 500-560mm
• Workbench area: 3700x1200mm, slider area: 3700x1000mm
• Motor: 90kw
• Loading weight of upper mold: 3.5 tons
• Feeding line height: 300±50mm
• Machine dimensions: 5960*2760*5710mm

2. Technological innovation and design highlights

• Excellent design of three-section combined structure of the fuselage
• The technological crystallization of high-quality alloy castings and finite element analysis
• The slider adopts a high-precision design of prestressed eight-sided circulating needle roller guide
• The use of reverse symmetrical dynamic balancing device ensures the smooth operation of the whole machine
• Intelligent configuration of large oil volume thin oil lubrication device and air bag static balancing device
• The split design of brakes and clutches provides power balance and durability

3. Efficient production and application fields

• The versatility of equipment configuration improves production efficiency
• The superior performance of the specification parameters is suitable for a variety of stamping processes
• The rigidity and precision of the fuselage ensure long and efficient operation
• High-speed heavy-load sliding bearing structure ensures bottom dead center accuracy

4. Headstock processing technology: exquisite guarantee of manufacturing quality

• Double annealing and vibration aging treatment during casting manufacturing process
• Man-made interference in vibration aging eliminates 98% of internal stress
• The use of laser tracker (US API) ensures manufacturing quality

5. Conclusion: Excellent quality and future prospects of DDH 400T ZW-3700

DDH 400T ZW-3700 high-speed precision punch machine has demonstrated its trend-leading strength in the field of punch machines with its advanced configuration, excellent performance and innovative design. Its multiple technological innovations and efficient production capabilities make it a powerful assistant in the manufacturing industry, injecting new impetus into the development of the industry. With the continuous development of manufacturing technology, DDH 400T ZW-3700 will surely show better performance in the future and bring more possibilities to the industrial field.
